What's the Marine Hydrophore ?

Marine Hydrophore is for ship drinking water, washing water, rinse with water and outboard water supply system (Marine Auxiliary Equipment).

Marine Electric Heating Hydrophore Tank

Application: suitable for heating water on the ship or platform, heated fresh water for crew use.

Principle Description

Hot water tank can be combined to use with fresh water pressure tank on board, namely use fresh water to renew the stock of hot water tank, and then heated by electric for usage of entire vessel.

Working procedure and structure:

The heater shall be connected with fresh water pressure tank. Supply fresh water to the heater, after the fresh water is heated it can use. The temperature in the heater is controlled by pressure temperature controller. When the temperature is lower than 45℃, the power will be switched on, the electric heater becomes to heat. When the temperature rises to 65℃, the power will be switched off. When the water is reduced to lower than control range of the level relay, the power will be switched off automatically, to ensure the electric heater coil safety. On the tank there also has a safety valve, to protect the tank works safety.

Marine Pressure Hydrophore Tank

Application: pressure water tank can be used to provide fresh water for living and cleaning of ship and drilling platforms.

Model Significance

A：Wall-hanging type, Repair entrance: barrel flange，

B：Wall-hanging type ,Repair entrance: barrel manhole，

C：Vertical type, Repair entrance: barrel manhole.

Principle Description

The device use gas pressured by pump to compressed air in order to maintain the water in cabinet body under a suitable air pressure. To provide fresh water to crews.

Marine Steam Electric Heating Hydrophore Tank

Application: steam-electric hot water tank is suitable for all kinds of ship which have steam  source or power to produce hot water which is for crewmen。

With electric/steam as the heating recourse，this series of heater is applicable for life use fresh water pipe system in vessel and well-drilling platform，it can be work independent，water temperature in a certain scale，provided safety relief device.

Marine Steam Heating Hydrophore Tank

Application : This series of hot water tank is suitable for fresh water system which is heated by steam。

steam hot water tank and vessel fresh water pressure tank in series, namely the use of fresh water pressure tank in the freshwater of the cabinet, after steam heating heating components for use in the whole ship.

1. Temperature control valve: according to the set temperature control range open and close.

2. Pressure gauge: the pressure in the cabinet.

3. Thermometer: display cabinet temperature.

4. Safety valve: when the pressure inside the cabinet exceeds 0.63MPa, the safety valve open, releasing the pressure in the cabinet.

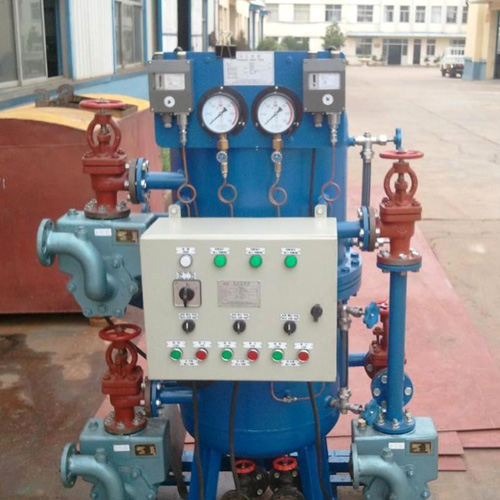

Marine Combined Hydrophore Tank

Application

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and good look appearance, easy to install and maintain, and it is an ideal unit for water supply system.

1. Temperature control valve: according to the set temperature control range open and close.

2. Pressure gauge: the pressure in the cabinet.

3. Thermometer: display cabinet temperature.

4. Safety valve: when the pressure inside the cabinet exceeds 0.63MPa, the safety valve open, releasing the pressure in the cabinet.
